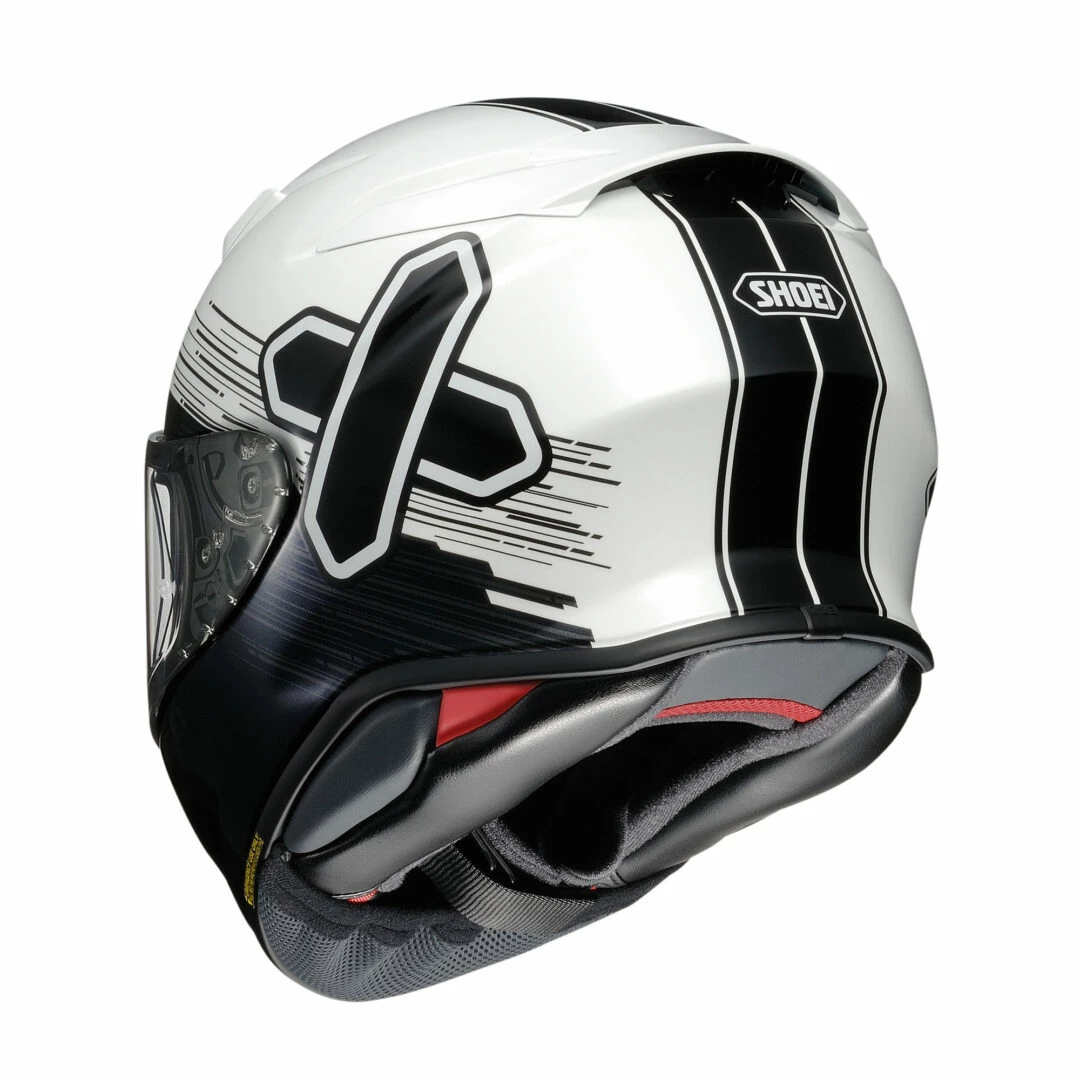

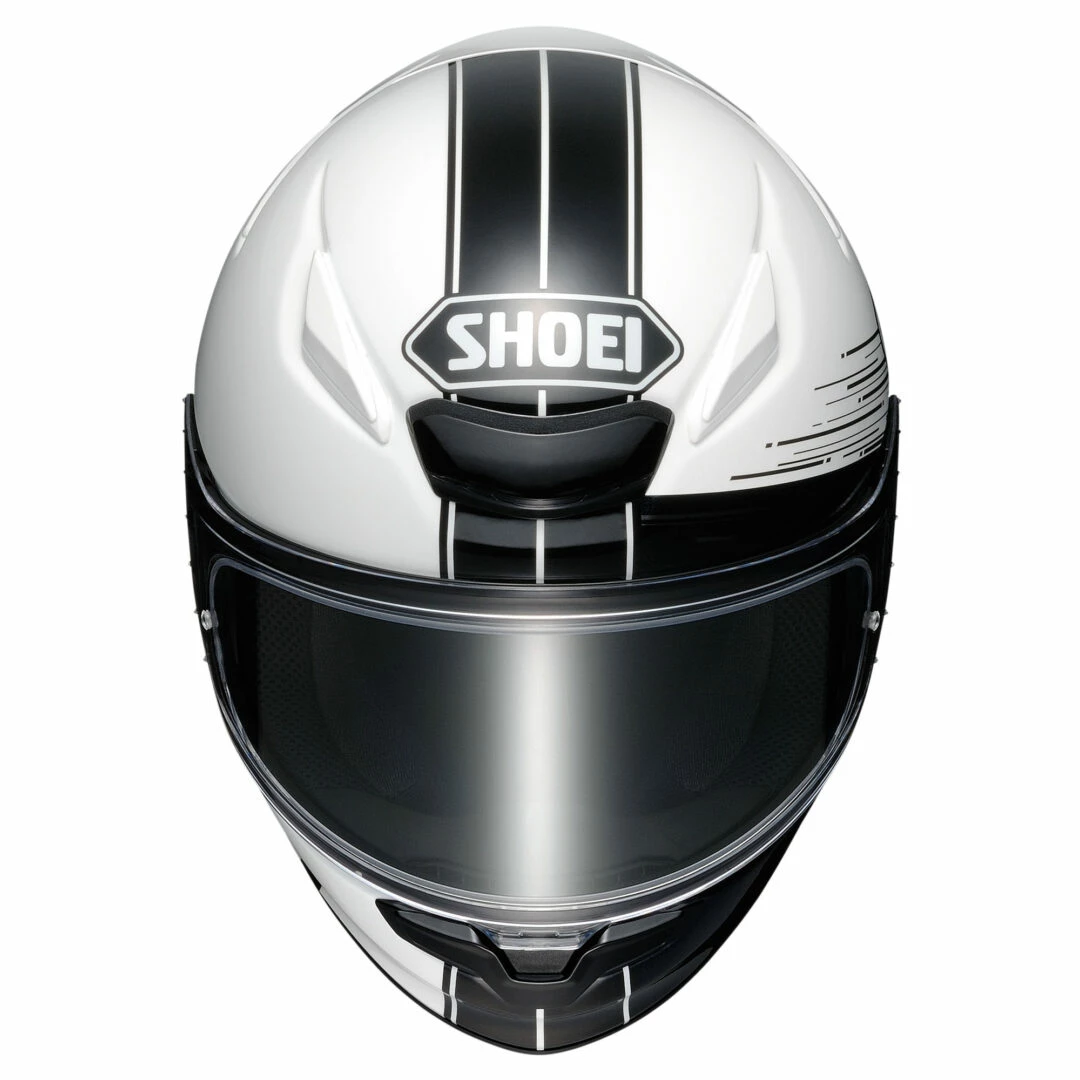

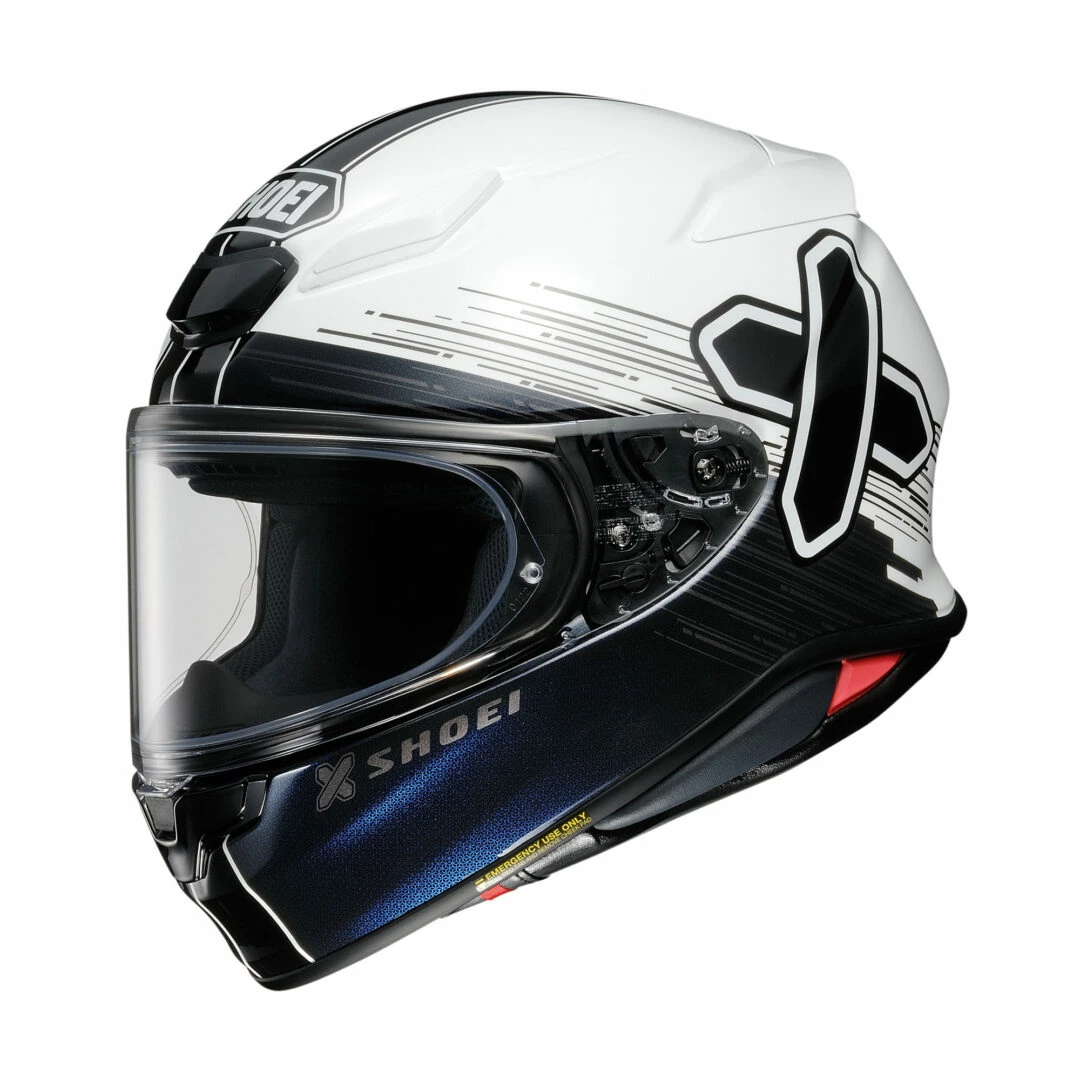

SHOEI RF-1400 Ideograph TC6 Full Face Helmet

The Evolution of Perfection is a fitting tagline for the longest-standing, most decorated full-face helmet model in the SHOEI lineup, the RF. The process of improving is a constant evolution, and with a world-class team of designers and engineers leading the charge, we pushed our resources and technologies to the brink, utilizing our state-of-the-art wind tunnel facility, an extensive array of proprietary materials, and the industry’s most stringent quality assurance practices to develop the all-new RF-1400. SHOEI’s lightest and most compact SNELL-approved full-face helmet model, the RF-1400 has evolved the pursuit of perfection to the next level.

DESIGN CONCEPT

Kaizen is a Japanese term that means continuous improvement and inspires the change-for-the-better approach to everything we do here at SHOEI. This time-tested, respected philosophy drives our constant progression in all aspects of helmet design and development, no matter how large or small the incremental improvements. With kaizen principles always at the forefront, we believe that The Evolution of Perfection is a fitting tagline for the longest-standing, most decorated full-face helmet model in the SHOEI lineup, the RF.

The process of improving is a constant evolution, and with a world-class team of designers and engineers leading the charge, we pushed our resources and technologies to the brink, utilizing our state-of-the-art wind tunnel facility, an extensive array of proprietary materials, and the industry’s most stringent quality assurance practices to develop the all-new RF-1400. SHOEI’s lightest and most compact SNELL-approved full-face helmet model, the RF-1400 has evolved the pursuit of perfection to the next level.

AERODYNAMIC PERFORMANCE

Developed and refined in SHOEI’s state-of-the-art, in-house wind tunnel facility from the very beginning stages of life, the RF-1400 boasts impressive improvements in aerodynamic performance, including a 6% reduction in lift and a 4% reduction in drag (as compared to the RF-1200).

More so, thanks to a compact, aerodynamic shell shape that features an integrated spoiler, along with strategically-shaped air intake and exhaust vents that help streamline the helmet?ï?¿?½s overall profile, the RF-1400 significantly reduces the load placed on a rider’s head.

Optimal shell aerodynamics improves the helmet’s ability to cut through streaming air and contributes to a welcomed reduction in wind noise without blocking the road’s valuable informative sounds.

CWR-F2 SHIELD & BASE PLATE SYSTEM

The all-new CWR-F2 shield system features improved visibility, functionality, and performance over its predecessor. Like all SHOEI full-face shield systems, the CWR-F2 provides a vast field of vision and protects against 99% of the sun’s damaging UV rays. Thanks to SHOEI’s innovative 3D injection-molding process, the CWR-F2 shield also offers a distortion-free view throughout the entire RF-1400 eye-port.

Highlighting a long list of updates, the CWR-F2 2D flat outside surface combined with 3D technology inside offers an aggressive look with optimized visibility for a more natural view. Vortex Generators (borrowed from X-Fourteen technology) on the sides of the shield improve aerodynamics and reduce wind noise, and an all-new center locking mechanism helps to evenly

distribute shield forces across both spring-loaded base plates. Additionally, the first position opening function offers advanced venting and defogging capabilities.

A completely redesigned base plate system boasts smoother shield openings and closures, and a new shield adjuster mechanism allows for easier, more precise tuning. Combined with an all-new window beading that reduces wind and water intrusion, the CWR-F2 shield and base plate system is the most advanced on the market today.

PINLOCK® ANTI-FOG SYSTEM

The new, 10% larger DKS-304 PINLOCK EVO lens system improves the lateral field of

vision thanks to relocated pins outside of the eye-port, and offers the most effective anti-fog protection in existence.

OPTIMIZED VENTILATION

Overheating while riding or racing can directly impact rider fatigue and safety, which is why the ventilation performance of the all-new RF-1400 was a crucial feature while designing the helmet. Utilizing SHOEI’s in-house wind tunnel to help reveal the optimal balance between airflow and silence, SHOEI designers and engineers relocated the center/forehead vent, and also equipped it with an additional air intake hole, to help increase the volume of cooling air entering the helmet. Additionally, a new, enlarged exhaust outlet vent helps take better advantage of negative pressure suction at the rear of the helmet, yielding improved hot-air expulsion.

In total, the RF-1400 features six (6) air intakes (2 lower, 2 front, 2 uppers) and four (4) exhaust outlets.

MULTI-PLY MATRIX AIM SHELL

Few characteristics of a motorcycle helmet are as critical as its first layer of defense, which is precisely why the all-new RF-1400 features the SHOEI-exclusive Multi-Ply Matrix AIM Shell construction. Combining a six-ply matrix of fiberglass with lightweight organic and high-performance fibers, the RF-1400’s proprietary AIM shell provides optimal impact absorption, strength, and elasticity, and is available in four shell sizes to ensure a custom fit for heads between the sizes of XS-XXL.

DUAL-LAYER MULTI-DENSITY EPS LINER

The RF-1400’s Dual-Layer, Multi-Density EPS liner not only provides enhanced impact absorption by utilizing varying densities of foam in key areas around the rider’s head but it is also designed to allow cooling air to travel unrestricted through tunnels created in the EPS, further enhancing the RF-1400’s superior ventilation characteristics. In addition to enhanced impact absorption and ventilation, the precise placement of multi-density EPS liner material yields a more compact, lightweight design.

3D MAX-DRY INTERIOR SYSTEM II

The RF-1400 is equipped with a fully removable, washable, adjustable, and replaceable 3D Max-Dry Interior System II. The 3D center pad components are three-dimensionally shaped to match the contours of a rider’s head, allowing for an extremely comfortable fit while maintaining the secure hold necessary for distraction-free, high-speed riding. Additionally, the RF-1400’s 3D-shaped cheek pads are available in multiple thicknesses for a customizable fit, and SHOEI’s exclusive Max-Dry material absorbs and dissipates sweat 2X faster than traditional nylon.

Newly designed cheek pads feature more volume on the bottom for greater comfort and reduced wind noise, and the soft yet durable lower cheek pad fabric provides an extremely plush fit and feel. The hybrid of moisture-absorbent, quick-drying material in areas that cover the cheeks and brow, along with soft, raised fabric in areas that tend to rub against the rider’s face during helmet removal, gives RF-1400 riders the perfect balance between plushness and performance.

Adding to the comfort package, specially designed cheek pad channels help eliminate the pressure created by eyeglass arms around the temple area for riders who wear glasses.

EMERGENCY QUICK RELEASE SYSTEM (E.Q.R.S.)

Borrowing technology developed for SHOEI’s road and off-road racing helmets, the RF-1400 is equipped with the SHOEI-exclusive Emergency Quick Release System that allows emergency medical personnel to easily remove the cheek pads from an injured rider’s helmet. With the cheek pads removed, the helmet can be safely lifted from a rider’s head without creating unnecessary strain in the neck area.

ADVANCED NOISE REDUCTION

Taking in the road’s informative sounds is important, but too much-unwanted noise inside a helmet can negatively impact the riding experience, which is why the RF-1400 underwent significant testing to strike the perfect balance. In addition to optimal shell aerodynamics that reduces wind noise around the helmet, the RF-1400’s advanced shield aerodynamics (thanks to Vortex Generators), all-new air-tight window beading, and voluminous cheek pads, which further restrain wind noise inside the helmet, combine to create an incredibly quiet riding experience.

SHOEI RF-1400 The latest generation in the most prestigious pedigree

of premium full-face motorcycle helmets.
